Building a simple component in React.js - Part 1 - Intro and Basic UI

In the next 3 posts, we’re going to build search and results components using React.js. The components will allow you to search for a company name and the matching names will be displayed beneath the search box.

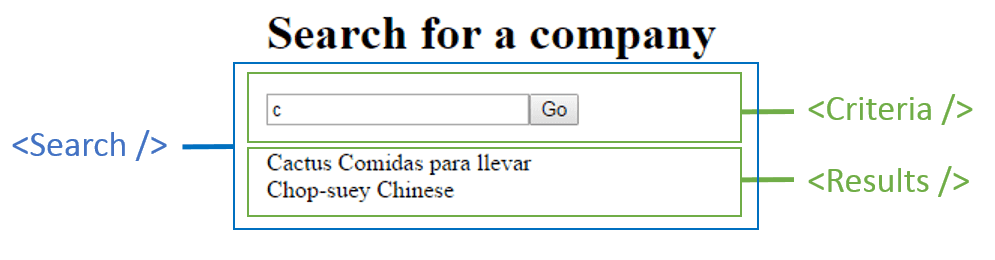

The components will look like below. There will be 3 components:

  1. Criteria. The search textbox and “go” button
  2. Results. The list of results
  3. Search. The overall component - the parent of Criteria and Results

Consuming page

The html of the consuming page is listed below.

  • Line 10 is a placeholder for where the components will be injected
  • Line 12 is a reference to React.js
  • Line 13 is a reference to the React library that will transform the JSX in our components into valid HTML / JS
  • Line 15 is a placeholder for where we are going to write our React components
<!DOCTYPE html>
<html>
  <head> </head>


  <body>
    <h1>Search for a company</h1>


    <div id="app"></div>


    <script src="https://fb.me/react-0.13.3.min.js"></script>
    <script src="https://fb.me/JSXTransformer-0.13.3.js"></script>
    <script type="text/jsx">
      // TODO
    </script>
  </body>
</html>

Creating our 3 basic components

You create a component in React.js by calling React.createClass(). The key function within a React component, that you must implement, is render() which should return the JSX for the component - JSX is a lot like HTML.

In the code below, we create our 3 component classes, returning the basic JSX we need.

  • Line 24 defines the outer component referencing the sub components, Criteria and Results
  • Line 2 defines the Criteria component
  • Line 13 defines the Results component with some hardcoded results at this point
  • Line 35 is where we tell React to inject the outer component, Search, into the DOM node with id “app”
<script type="text/jsx">
  var Criteria = React.createClass({
    render: function () {
          return (
            <div>
              <input ref="search" type="search" placeholder="Search criteria" />
              <button>Go</button>
            </div>
          )
      }
  });


  var Results = React.createClass({
      render: function () {
        return (
          <ul>
            <li>test 1</li>
            <li>test 2</li>
          </ul>
        );
      }
  });


  var Search = React.createClass({
    render: function () {
          return (
            <div>
              <Criteria />
              <Results />
            </div>
          )
      }
  });


  React.render(<Search />, document.getElementById("app"));
</script>

In subsequent parts we will build on these component implementations …
